Application

Floating Charge
Communications and power equipment
Emergency lighting equipment
Security and alarm system
GPS
Office use computer, microcomputer processor and OA equipment
UPS / EPS power supply
Power plants substation
Medical equipment

Cycle application
1. Portable power
2. VCR, radio, etc.
3. Electric toys
4. Electric Tools e.g. Lawn Mower, Vacuum Cleaner, Camera etc.
5. Portable measuring device
6. Lighting equipment
Various types of signaling system

Model	Nominal Voltage	Capacity	Dimension				±3% (kg)Weight	Terminal
			Length	Width	Height	Total Height		Model
CB1.2-6	6	1.3	97	24	52	58	0.29	T1	C
CB2.8-6	6	2.8	66	34	95	106	0.53	T1	E
CB3-6	6	3	48	48	86	86	0.42	+T2/-T1	C
CB3.2-6	6	3.2	134	34	62	68	0.628	T1	C
CB3.8-6	6	3.8	70	47	101	107	0.615	T1/T2	E
CB4-6D	6	4	70	47	101	107	0.67	T1/T2	E
CB5-6E	6	5	70	47	101	107	0.7	T1/T2	E
CB5-6I			70	47	101	107	0.81	T1/T2
CB5-6T			70	47	101	---	0.8	T29
CB6-6	6	6	85	48	112.5	117.5	1.02	T1/T2	E
CB6.5-6	6	6.5	70.5	47	116	125	0.92	T1/T2	E
CB7-6F	6	7	151	34	95	101	1.07	T1/T2	C
CB8.5-6	6	8.5	98	57	116	115	1.5	T1/T2	F
CB10-6B	6	10	151	50	93.5	100	1.67	T1/T2	C
CB12-6D	6	12	151	50	93.5	100	1.8	T1/T2	C
CB14-6	6	14	108	71	139	139	2.25	+T2/-T1	K
CB14-6A								H S J	J
CB1.2-12	12	1.2	97	42.5	51.5	57.5	0.55	T1	B
CB1.9-12	12	1.9	176	34	61	67	0.8	T1	C
CB2.0-12	12	2.0	176	34	60	66	0.85	T1	C
CB2.8-12	12	2.8	70	46	98	104	0.8	T1/T2	C

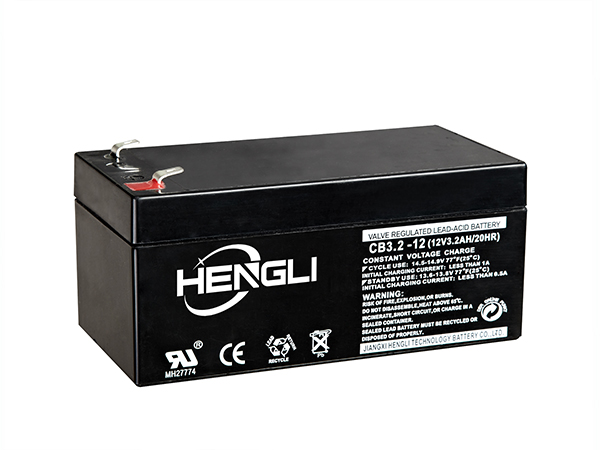

CB3.2-12	12	3.2	134	67	60	66	1.25	T1	B
CB4-12H	12	4	90	70	100	106	1.32	T1/T2	L
CB4-12I			90	70	100	106	1.37	T1/T2
CB4.5-12	12	4.5	90	70	100	106	1.47	T1/T2	L
CB4.5-12I			90	70	100	106	1.37	T1
CB5-12B	12	5	90	70	100	106	1.46	T1/T2	L
CB5-12D			151.5	52.7	93	99	1.63	T1/T2	A
CB5-12H			90	70.4	100.5	106	1.60	T1/T2	L
CB6-12	12	6	151.5	52.7	93	99	1.75	T1/T2	A
CB6.5-12	12	6.5	151	65	94	100	1.95	T1/T2	A
CB6.5-12P							2.05	M6-L
CB6.5-12L							2.15	M5-L

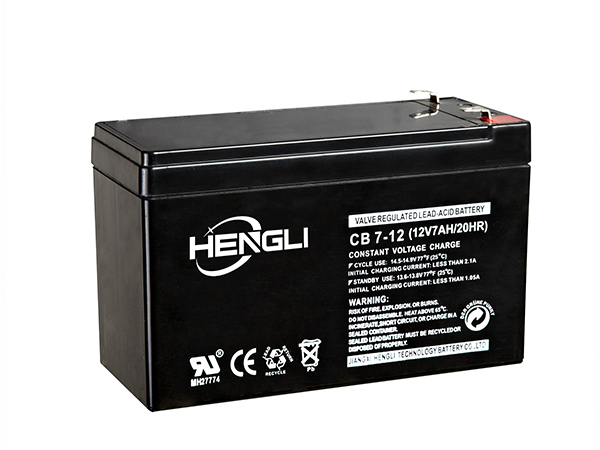

CB7-12	12	7	151	65	94	100	2.15	T1/T2	A
CB7-12B							2.25	T1/T2
CB7.2-12	12	7.2	203	38	115	115	2.11	T74	B
CB7.5-12	12	7.5	151	65	94	100	2.34	T1/T2	A
CB7.5-12B								T73
CB8-12E	12	8	151	98.5	98.5	103	2.5	T2	A
CB8-12A			151	65	94	100	2.5	T1/T2
CB8-12B							2.55	T1/T2
CB9-12B	12	9	151	65	112	118	3	T1/T2	A
CB9-12D			151	65	112	118	2.9	T1/T2
CB10-12	12	10	151	98.5	95	101	3.25	T1/T2	A
CB12-12B	12	12	151	98.5	95	101	3.6	T1/T2	A
CB12-12B								M5-L	A
CB12-12K								T2-C
CB13-12	12	13	181	76.5	167	167	4.8	M5-L	D
CB13-12A								M5-L
CB15-12	12	15	181	76.5	169	169	5	M5-R	D
CB17-12	12	17	181	76.5	167	167	5.15	M5-L	D
CB17-12E								T2
CB17-12F								M5-L
CB17-12H								M6-L
CB18-12F	12	18	181	77	168	168	5.3	M6-R	D
CB18-12E			181	76.5	167	167	5.35	M5-L/M6-L
CB20-12	12	20	181	76.5	169	169	5.6	T2/M5-L/M5-R	D
CB22-12A	12	22	181	76.5	167	167	5.9	M5-L	D
CB22-12B			181	77	168	168	5.9	M6-R/M5-L
CB24-12	12	24	166	175.5	127	127	8	M6-L	D
CB25-12	12	25	164.5	175	127	127	7.3	M6-L/R	B

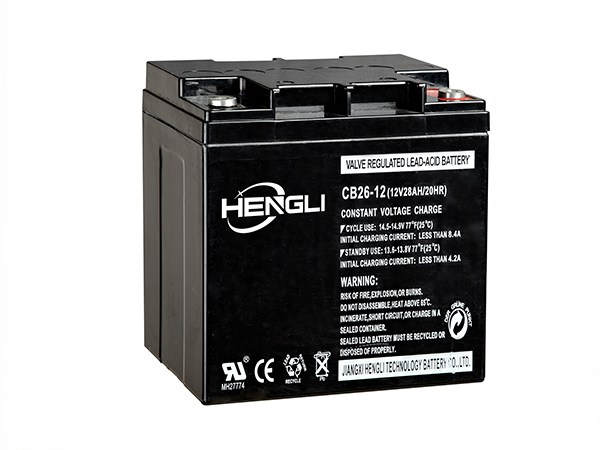

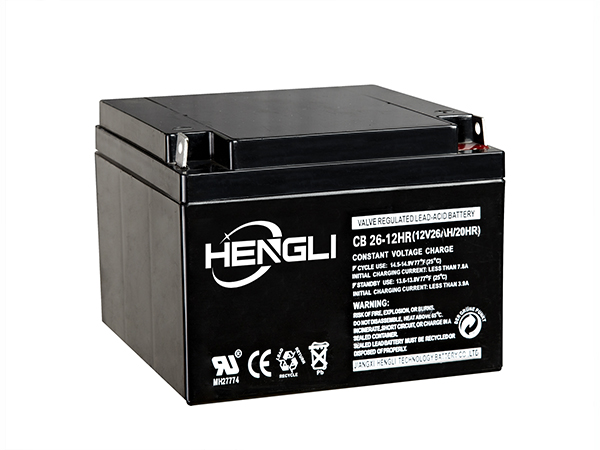

CB26-12	12	26	165	125	175	182	7.3	M6-L/R	D
CB28-12	12	28	165	125	175	182	9	M6-L/R	D
CB28-12E			165	125	175	175	9	M6-L	D
CB28-12B			164.5	175	127	127	7.8	M6-L	B
CB55-16	16	55	260	169	214	217	22.5	M8-R	M
CB180-6	6	180	307	169	222	225	27	M8-R	B
CB200-6	6	200	307	169	222	225	27.5	M10-L/M8-R	F
CB200-6A			260	180	248	264	27.8	M8-L/M6-R
CB225-6	6	225	260	180	248	251	29.5	M6-R	F
CB32-12	12	35	198	131	155	177	9.2	M6-L	C
CB32-12A			198	131	155	164		M6-R

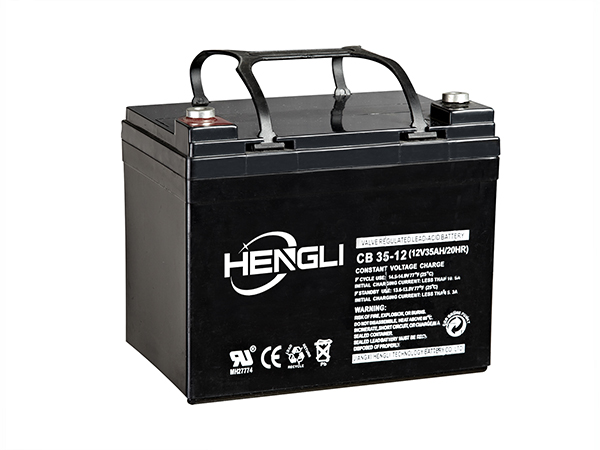

CB35-12	12	35	198	131	155	177	10	M6-L	C
CB35-12A						164		M8-R
CB35-12B			198	131	158	158		M6-R/M5-R
CB36-12	12	36	198	131	155	177	10.5	M6-L	C
CB36-12B			198	131	158	158		M6-R
CB38-12A	12	38	196	165	175	182	12	M6-L	D
CB38-12B			196	165	175	175		M6-R
CB38-12C			197	166	169	169		M6-R
CB40-12A	12	40	196	165	175	182	12.6	M6-L	D
CB40-12B						175		M6-R
CB40-12C			196	166	169	169		MT-L
CB50-12	12	50	197	166	169	169	13.5	M6-R	D
CB50-12A			196	165	175	182	13.5	M6-L
CB50-12C			229	136	210	232	16	M8.5-L	C

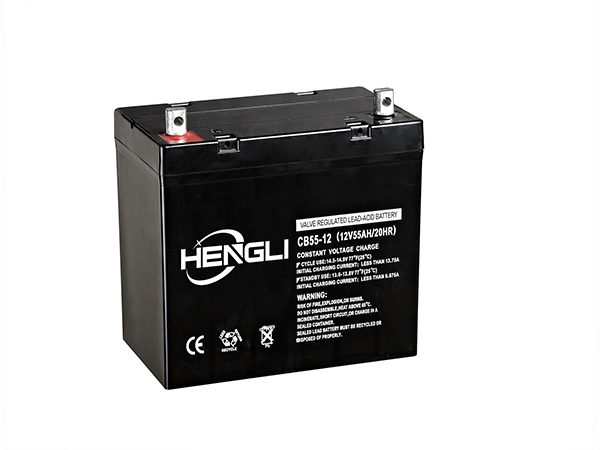

CB55-12A	12	55	229	136	210	232	16.8	M8.5-L	C
CB55-12B						214		M6-R/M8-R
CB55-12K						255		M8-R
CB55-12H			229	138	210	214	16.9	M6-R
CB60-12	12	60	261	167	184	188	20	M6-R	D
CB65-12B	12	65	351	166	176	174	20	M6-L/R	D
CB65-12F			351	166	173	178	20.5	M6-L	C
CB65-12G			351	166	173	184		M6-R
CB70-12	12	70	259	168	210	232	22.0	M8-L	C
CB70-12A						214		M6-R
CB70-12C						240		M8
CB75-12	12	75	259	168	210	232	23	M8-L	C
CB75-12A			259	168	210	214		M6-R
CB80-12A	12	80	351	166	176	176	22.8	M6-L/R	D
CB80-12H			306	169	208	232	26	M8.5-L	C
CB80-12D			332	175	215	243	24.3	M8.5-L	C
CB80-12E			332	175	215	223		M6-R
CB90-12	12	90	306	169	208	232	26	M8-L	C
CB90-12A						214		M6-R
CB90-12F						240		M8
CB90-12C			332	175	215	243	28	M8.5-L	C
CB90-12D			332	175	215	223		M6-R

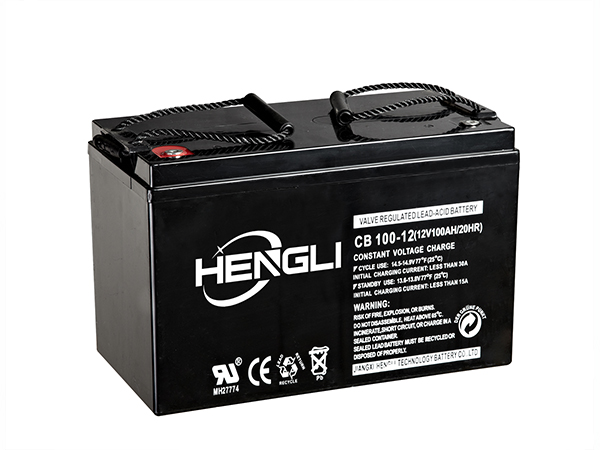

CB100-12J	12	100	332	175	215	221	29	M8-R/M6-R	C
CB100-12N						260		M8-R
CB100-12M			408	174	207	240	30.5	M10-L
CB100-12D			332	175	221	243	30.5	M8.5-L
CB100-12E			332	175	221	223		M6-R
CB110-12	12	110	332	175	215	243	29	M8.5-L	C
CB110-12A			332	175	215	223		M6-R
CB120-12	12	120	408	174	207	240	34	M6-L/M8-R/M10-L	C
CB134-12	12	134	341	173	283	285	40	M6-R	C
CB150-12	12	150	483	170	242	240	41	M8-L/M6-R/M8-R	C
CB180-12	12	180	530	209	214	240	50.5	M9-L/M8-R	B
CB200-12	12	200	530	209	214	240	53	M9-L/M8-R	B
CB200-12A			522	240	219	244	56.2	M9-L	B
CB200-12B			522	240	219	223		M8-R
CB250-12	12	250	520	268	220	245	68.6	M9-L	B
CB250-12A						224		M8-R
