Application
1. Tel - Communications and backup power
2. Optical fiber and cell site station
3. Switch gear control in substation
4. Power, standby power station
5. Solar energy, wind power energy systems
6. Fire and security system
GFM (2 V series)
Features
(A) .Long life
High intensity tight assembly process improves battery assembly tightness and prevents loss of active material so as to enhance battery life. To adjust the density of electrolyte can improve charge acceptance and enhance battery deep discharge cycle capability. Increasing the amount of acid designed to ensure the battery electrolyte depletion will not shorten battery life. So the normal float design life GFM series battery can be upgraded up to at least 15 years (25%)
(B) Excellent high rate discharge performance
High intensity tight assembly process, it can maintain a very low internal resistance and provide high and excellent current discharges than conventional batteries by 20%.
(C) Low self-discharge
Our high purity raw materials characteristics and low internal resistance design of the battery can be stored at room temperature for six months without having a recharge process.
(D) Friendly Maintenance
Special oxygen absorption designed to overcome the less electrolyte water loss during the charging process. There is almost no loss in the water content of the electrolyte, therefore the battery can be maintained easily without replenishment of electrolyte.
(E) Safety
Special safety valve equipped internally of the battery can effectively isolate external spark and does not cause the battery internal explosion.
(F) Installation is simple
Battery can be installed vertically and horizontally in small footprint installation, which is flexible and convenient.
(G) Environmental Friendly
The battery does not emit acid mist, it will not affect environment and corrosion of the site area, and it can be installed directly to the battery in the office or equipment room with ventilation normal.
Model
|
Nominal Voltage
|
Capacity
|
Dimension
|
±3% (kg) Weight ±3%
|
Terminal
|
Length
|
Width
|
Height
|
Total Height
|
Model
|
Position
|
GFM100-2B
|
2
|
100
|
171
|
72
|
206
|
---
|
5.55
|
M6.5-L
|
G
|
GFM120-2
|
2
|
120
|
171
|
72
|
206
|
---
|
6.4
|
M6.5-L
|
G
|
GFM150-2
|
2
|
150
|
171
|
101
|
206
|
---
|
8.2
|
M6.5-L
|
G
|
GFM150-2A
|
171
|
130
|
206
|
239
|
M10-L
|
GFM150-2B
|
230
|
M8-R
|

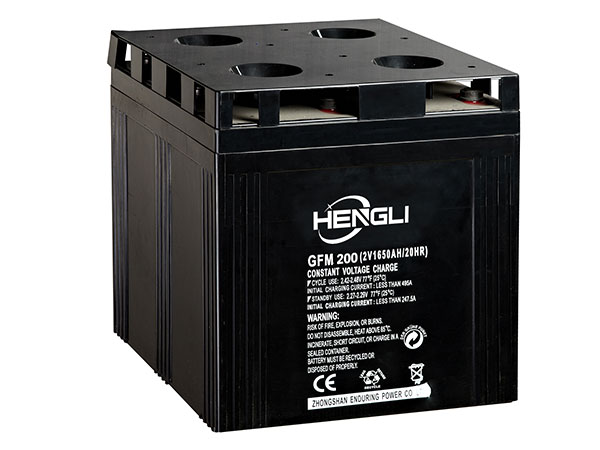

GFM200-2
|
2
|
200
|
171
|
106
|
332
|
365
|
13
|
M10-L
|
G
|
GFM200-2A
|
356
|
M8-R
|

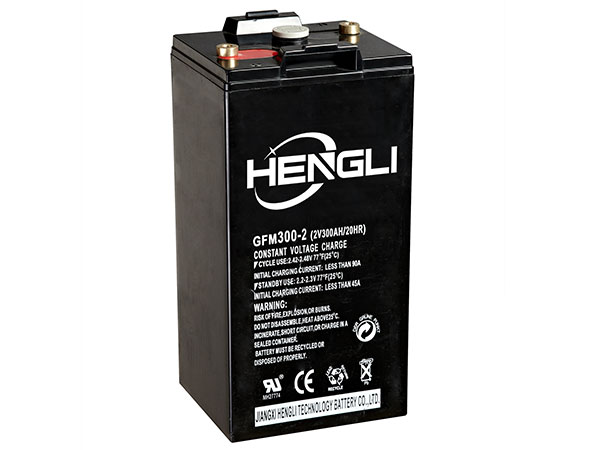

GFM300-2
|
2
|
300
|
170
|
150
|
332
|
365
|
18.2
|
M10-L
|
G
|
GFM300-2A
|
170
|
150
|
343
|
356
|
M8-R
|
GFM400-2
|
2
|
400
|
211
|
176
|
329
|
367
|
26
|
M10-L/M8-R
|
H
|
GFM500-2
|
2
|
500
|
243
|
173
|
330
|
364
|
30
|
M10-L
|
H
|
GFM500-2A
|
241
|
171
|
331
|
364
|
M8-R
|
GFM600-2
|
2
|
600
|
304
|
175
|
331
|
366
|
36.7
|
M10-L/M8-R
|
H
|
GFM800-2
|
2
|
800
|
410
|
175
|
335
|
365
|
52.5
|
M10-L/M8-R
|
I
|
GFM1000-2
|
2
|
1000
|
475
|
171
|
331
|
364
|
60.5
|
M10-L
|
I
|
GFM1000-2A
|
475
|
171
|
331
|
355
|
M8-R
|
GFM1200-2
|
2
|
1200
|
475
|
171
|
331
|
364
|
65.5
|
M10-L
|
I
|
GFM1200-2A
|
475
|
171
|
331
|
355
|
M8-R
|
GFM1500-2
|
2
|
1500
|
401
|
351
|
342
|
378
|
90.0
|
M8-R/M10-L
|
I
|
GFM2000-2
|
2
|
2000
|
490
|
350
|
345
|
383
|
125.0
|
M8-R/M10-L
|
I
|
GFM3000-2
|
2
|
3000
|
712
|
353
|
341
|
382
|
190.0
|
M8-R/M10-L
|
I
|
