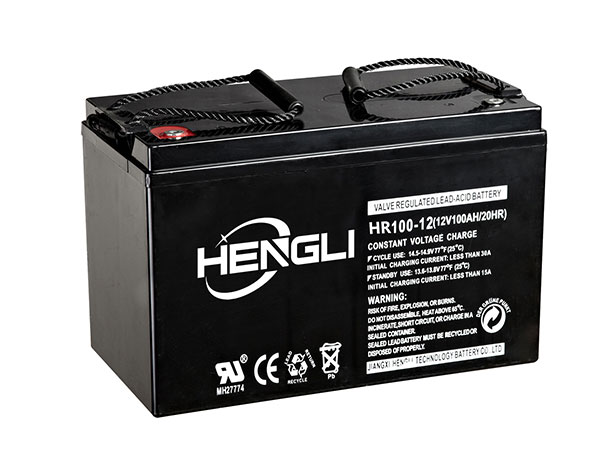

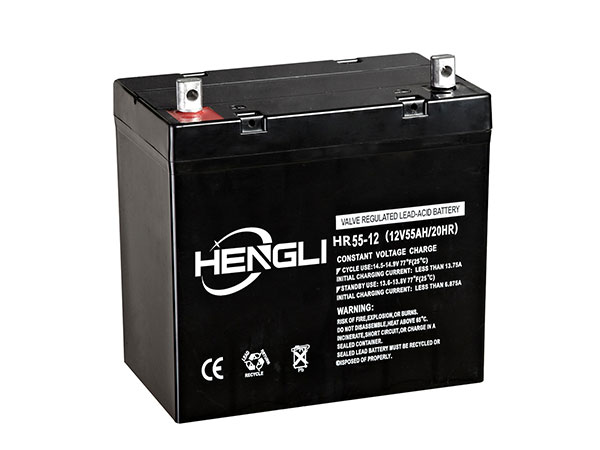

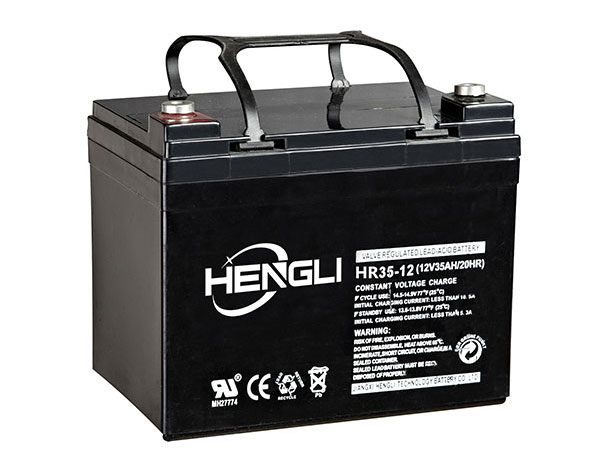

HR Series (High Power )
Features
A. High discharge design to maintain large current float in UPS application
B. High utilization of the active material
C. High voltage
D. Low internal resistance
Product details
Application
Float Application
1. Communications and power equipment
2. Security and alarm system
3. GPS
4. Office use computer, microcomputer processor and OA equipment
5. UPS / EPS power station
6. Switching substation and power plant emergency system
7. Medical equipment
Main product models and parameters:

Model Nominal Voltage(v) Capacity(AH) Dimension (mm) Weight ±3%(kg) Terminal
Length Width Height Total Height Model Position
CB621W 6 5 70 47 101 106 0.88 T1/T2 E
CB653W 6 13 151 50 95 101 2.15 T1/T2 C
CB1213W 12 3.5 134 67 60 67 1.5 T1/T2 B
CB1214W 12 3.0 141 32 103 109.5 1.41 T1/T2 C
CB1221W 12 5.0 90 70 101 107 1.76 T1/T2 L
CB1223W 12 5.0 90 70 101 107 1.95 T1/T2 L
CB1224W 12 6.0 151 51 94 100 2.28 T1/T2 A
CB1236W 12 8.0 151 65 94 100 2.7 T1/T2 A
CB1250W 12 13 151 98 94.5 100 3.97 T1/T2 A
CB1280W 12 20 181 76 167 167 6.27 M5-R/L D
CB12100W 12 28 165.5 125 175 175 9.7 M5-L D
CB12103W 12 25 166 175 125 125 9.98 M5-L D
CB12135W 12 33 195.5 130 158 179 11.94 M6-R C
CB12150W 12 40 196 165 170 170 14.5 M5-L/R D
CB12210W 12 55 229 138 207 228 18.5 M8-L C
CB12260W 12 70 350 166 174 174 22 M6-R D
CB12300W 12 75 259 168 208 227 25.85 M6-L C
CB12365W 12 90 304 168 208 229 30.17 M6-L C
CB12400W 12 100 329 174 214 218 34 M6-R C
CB12450W 12 125 407 173 209.5 234.5 40.2 M8-L/R C
CB12475W 12 135 345 172 275 278 46.5 M8-R C
CB12520W 12 140 345 172 275 278 47.5 M8-R C
CB12550W 12 145 345 172 275 278 49.5 M8-R C
CB12600W 12 150 345 172 275 278 50.5 M8-R C
CB12630W 12 155 345 172 275 278 53 M8-R C
CB12700W 12 220 522 240 218 245 67 M8-L B
