1. Large capacity with high-current discharge performance

Batteryusing quality material with large capacity and high-current discharge performance.


2.  Good discharge acceptance under low temperature

Batteryhas good discharge acceptance under low temperature so as to avoid the battery life getting affected in winter days.


3.  Maintenance free

Batteryis made by valve type sealed structure which can prevent the water loss during using. No water replenishment is required.


4. Recovery of over discharging

Produced by the advanced formula of grid alloy and lead plaster, which conductive grid and active material can be more closely integrated.

Product details

5.  High-current discharge performance

Copper-insert terminal post makes the wire connection more solid and reliable as well as more conducive to high-current discharge of the battery.


6.  Better consistency

Increase the stability of multi-cell battery system with the consistency by using the advanced craftsmanship and technology.


7. Environmental friendly

No leaking batteries (Electrolyte and Water) due to reliable sealed structure design.


Main product models and parameters:

Model Nominal Voltage
(V)

Capacity(AH)
Dimension (mm)
Total Height
Weight ±2%
(kg)
Terminal
Length Width Height

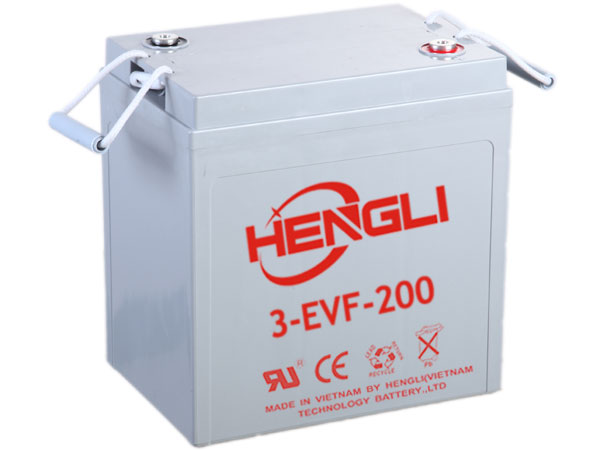

3-EVF-200 6 200 260 181 269 273 35.5 F

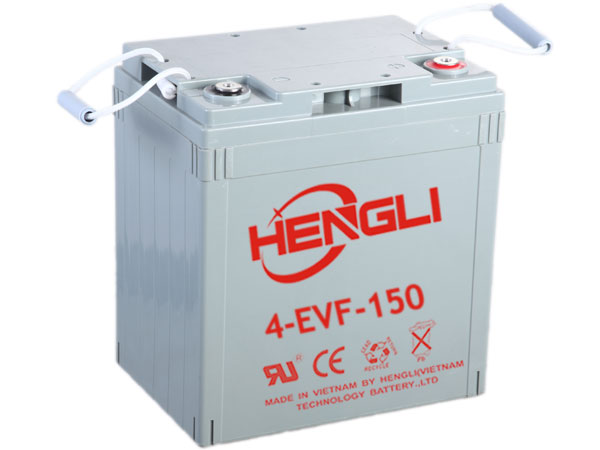

4-EVF-150 8 150 262 182 280 280 36.5 P

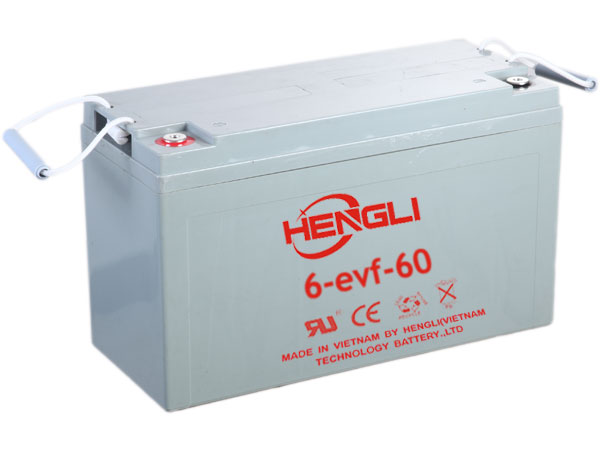

6-EVF-60 12 60 262 165 184 188 19.5 D

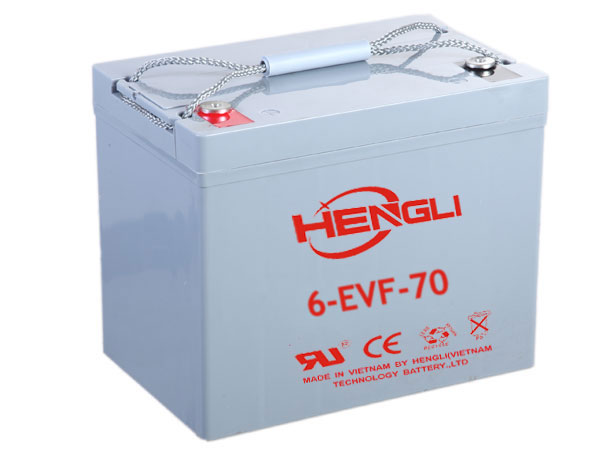

6-EVF-70 12 70 259 168 210 213 24 C
6-EVF-80 12 80 259 168 210 213 26.5 C

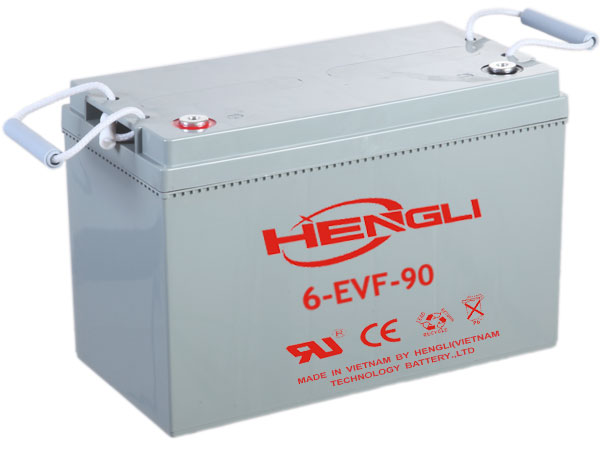

6-EVF-90 12 90 332 175 215 218 30.6 C
6-EVF-100 12 100 332 175 215 218 34 C

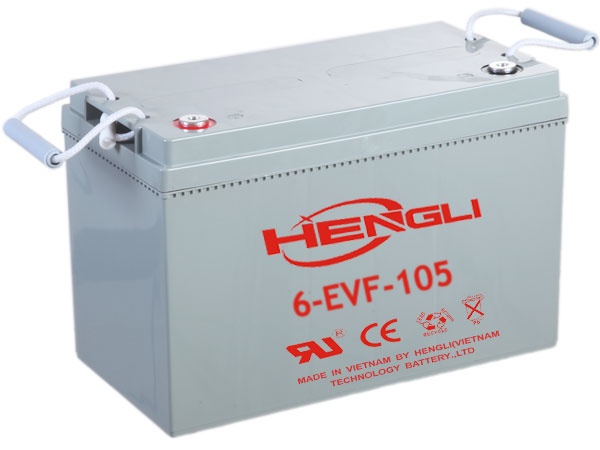

6-EVF-105 12 105 332 175 215 218 36 C

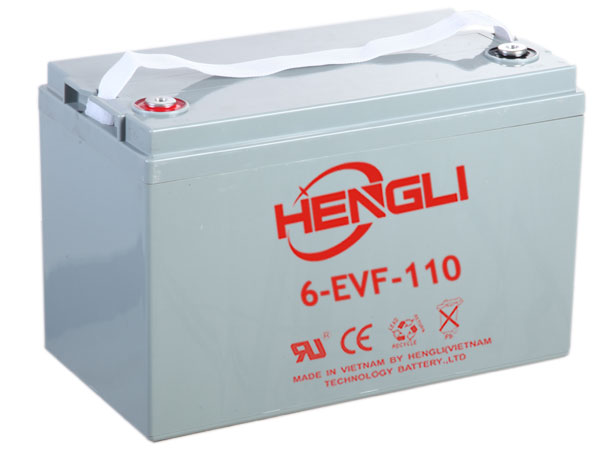

6-EVF-110 12 110 330 176 215 218 38 C

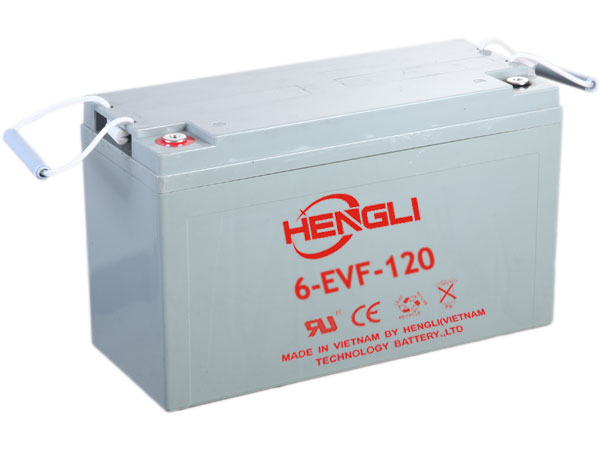

6-EVF-120 12 120 401 170 240 240 42.5 C

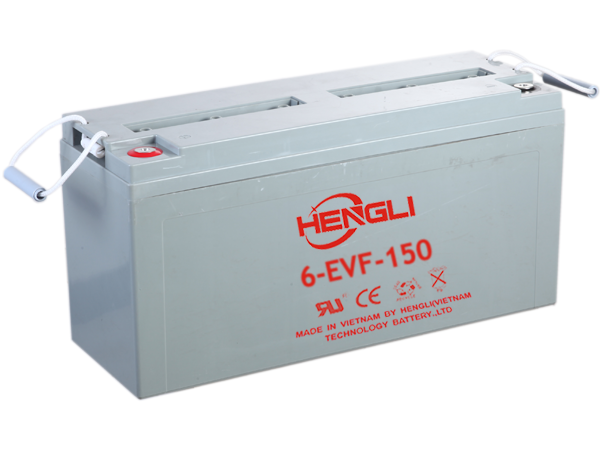

6-EVF-150 12 150 483 170 240 240 52 C
